HIGH PRESSURE THREADED AND SOCKET WELD FITTING

Saei Tajhiz Sepahan compnay offers a wide range of top quality high pressure threaded and socket weld fittings which are forged and suitable for many high stress applications.

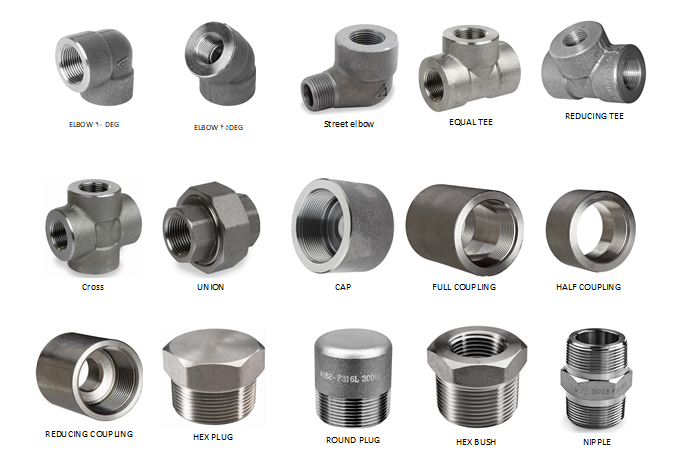

We have a wide variety of fittings available including:

  • 45° elbows 90° elbows
  • Straight Tees Reducing Tees
  • Couplings Half couplings
  • Caps                    Plugs and bushing crosses
  • Laterals Street elbows
  • Inserts



The most common materials used in forged fittings products is:

      ASTM A105, A350 LF2, A106, A312, A234, A403, ASTM A182( F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F5, F9, F11, F22, F44, F51/60, F53, F91)

All of these fittings are available based on ASME STANDARD in the following pressure ratings 2000, 3000, 6000 LBS(for threaded ends) and 3000, 6000 and 9000 LBS(for socket weld ends).

Dimensions are in accordance with ANSI B16.11, MSS SP-79, 83, 95,97 and BS 3799.

        Dimension range: 1/8" - 4" and order.

THREADED FITTINGS

SOCKET WELD FITTINGS
