BUTT WELD FITTING

Saeitajhiz Company offer a wide range of top-quality fittings based on hot and cold forming processes.

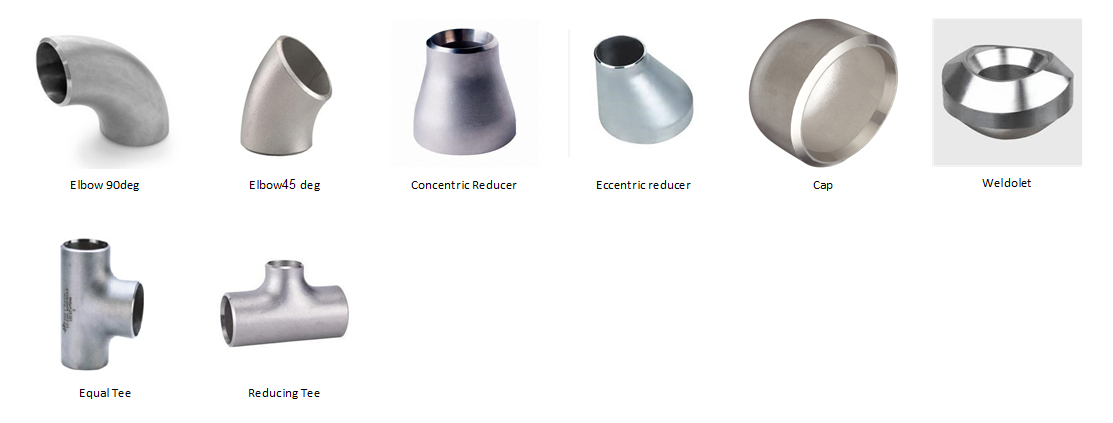

Butt weld fittings are available as elbows, tees, caps, reduces and out lets (olets). These fittings are the most common type of welded pipe fitting and are specified by nominal pipe size and pipe schedule. Buttweld fittings use seamless or welded pipe as the starting material and are formed (through multiple processes. Just as the pipe is sold from Schedule 10 to Schedule. 160

  • The most common materials used in butt-weld fittings products in accordance with ASME ASME B16.9, MSS SP-75, ASME B16.49 is:

        ASTM A234 WPB/C ASTM A420 WPL6 WPB, WPC, WPL6, WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70, WPHY 80, WPHY 100 ASTM A420 WPL3 ASTM A403 WP304, H & L, ASTM A403 WP316, H & L, ASTM A403 WP321, H, ASTM A403 WP347, H, ASTM A403 WPS 31254.

  • Dimensions and materials are in accordance with ASTM, API, ANSI/ASME, MSS SP and DIN.

        Dimension range: 1/4" - 48" and order size

All of these fittings are available based on ASME STANDARD in the following pressure ratings : SCHEDULE 5. 10. 20. 30. STD. 40. 60. 80. XS. 10. 120. 140. 160. XXS ,
